• 17" steel spare wheel

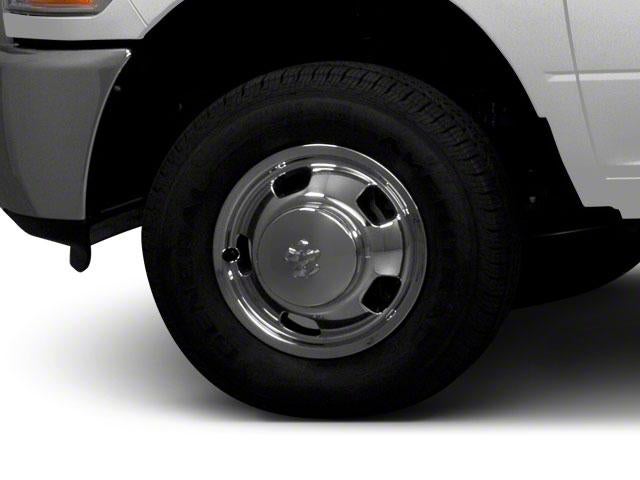

• 17" x 6.0" argent steel wheels (N/A w/AR9 Single Rear Wheel Group)
• Auto headlamps
• Black door handles
• Black front bumper
• Black grille
• Black pwr trailer tow mirrors -inc: supplemental signals, courtesy lamps, heated glass
• Black rear bumper
• Body-color headlamp filler panel
• Box & rear fender lamps
• Cab clearance lamps
• Cargo lamp
• Center wheel hubs
• Dual rear wheels
• Front air dam
• Front license plate bracket
• Full-size spare tire
• LT235/80R17E all-season BSW tires (N/A w/AR9 Single Rear Wheel Group)
• Locking tailgate
• Quad headlamps
• Tinted glass windows
• Variable-speed intermittent windshield wipers
• Winch-type spare tire carrier

• 120-MPH primary speedometer
• 12V auxiliary pwr outlet
• 2nd row in-floor storage bins
• Air conditioning

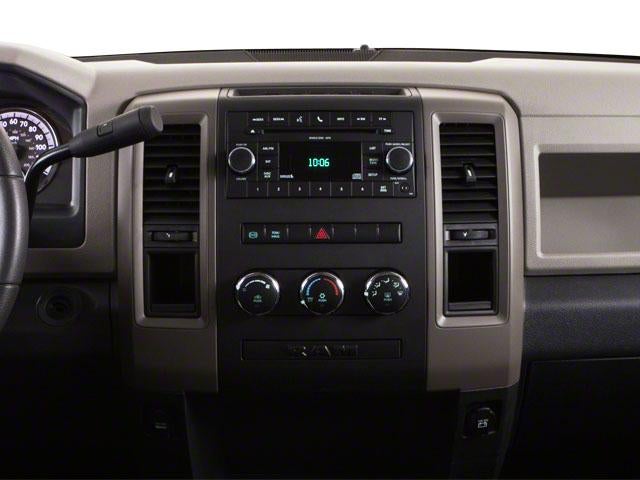

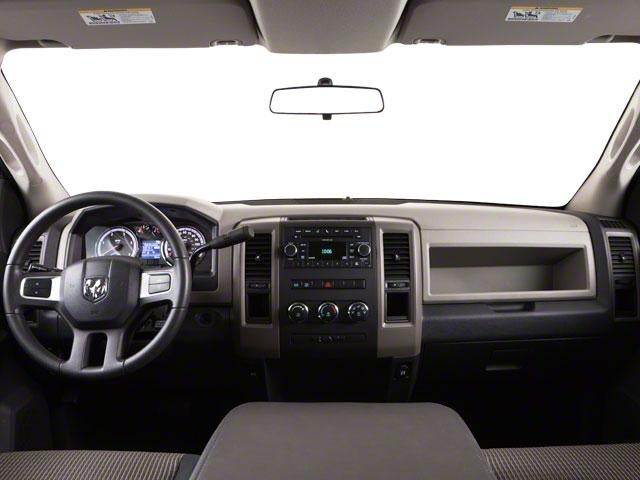

• Black instrument panel bezel
• Black vinyl floor covering
• Driver/passenger assist handles

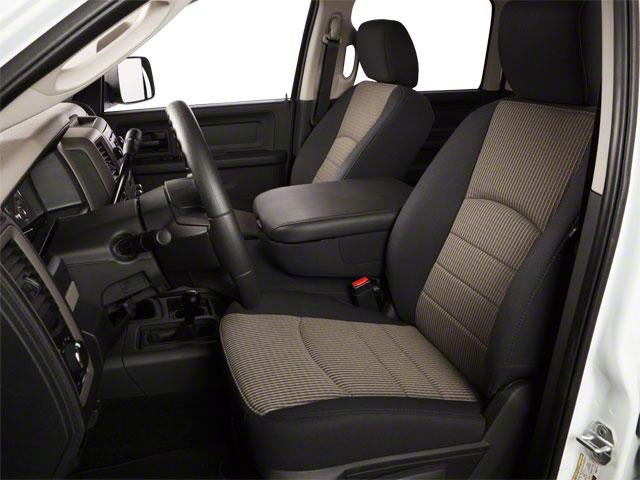

• HD vinyl 40/20/40 split-bench seat
• Instrument cluster w/display screen

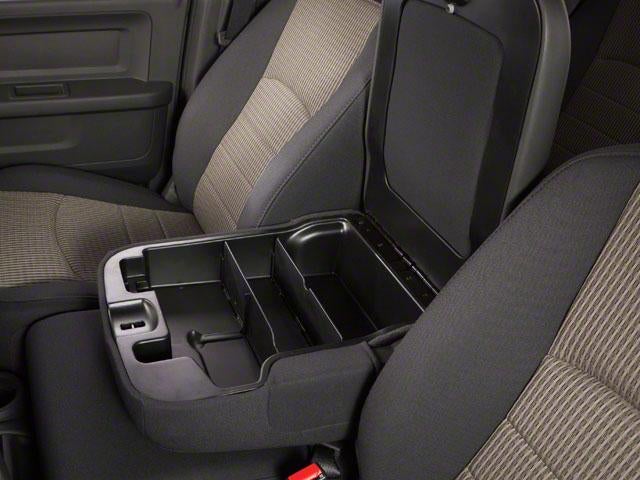

• Mini floor console
• Pwr accessory delay
• Pwr locks

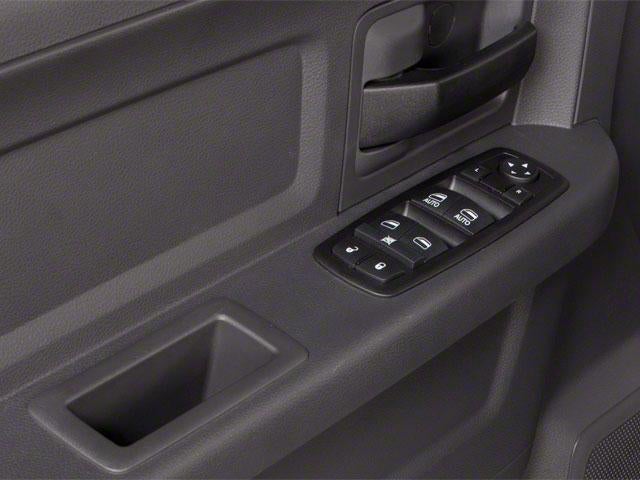

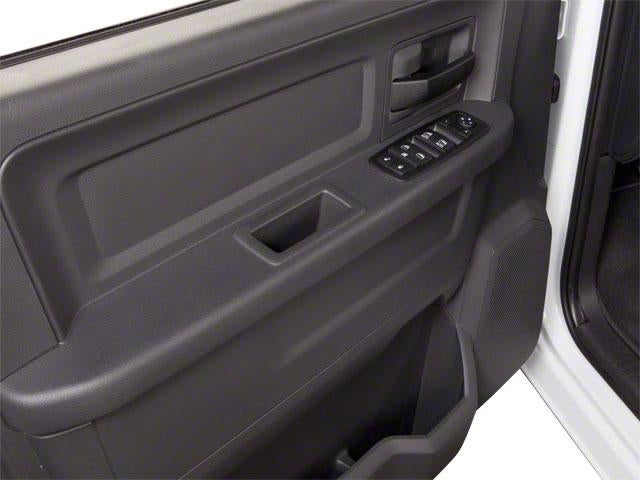

• Pwr windows w/front one-touch up/down
• Rear dome lamp

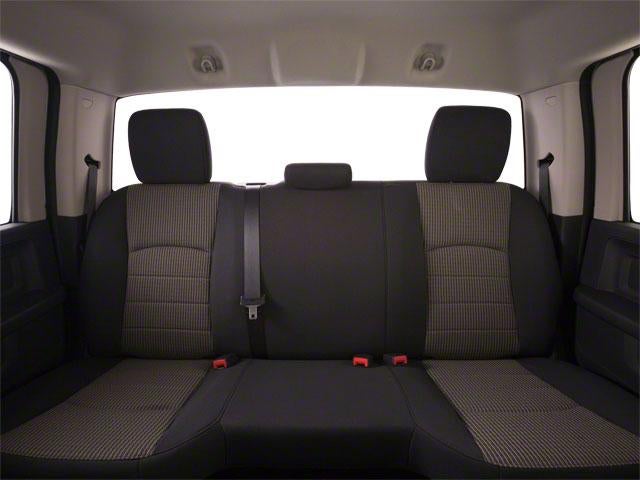

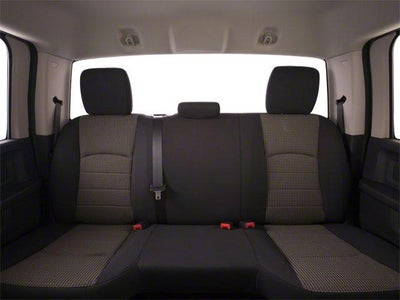

• Rear folding bench seat
• Rear underseat compartment storage
• Sentry Key theft-deterrent system
• Speed control
• Tilt steering column
• Vehicle info center

• 11.5" dual rear wheel axle ring gear diameter
• 11500# GVWR
• 160-amp alternator
• 3.42 rear axle ratio
• 7-pin trailer wiring harness
• 730-amp maintenance-free battery

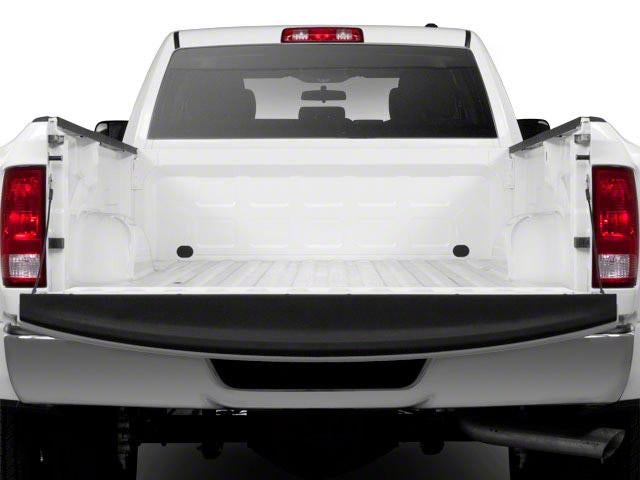

• 8' pickup box
• Anti-spin rear axle differential
• Class IV receiver hitch
• Diesel exhaust brake
• Electronically-controlled throttle
• Front stabilizer bar
• HD front shock absorbers
• HD rear shock absorbers
• Pwr 4-wheel anti-lock disc brakes
• Pwr rack & pinion steering
• Rear wheel drive
• Tow hooks
• Trailer tow wiring -inc: 4-pin connector

• Advanced multistage front airbags
• Child safety door locks
• Dual-note horn
• Front height-adjustable shoulder belts
• Front/rear side curtain airbags
• Supplemental front seat side airbags
• Supplemental side airbags

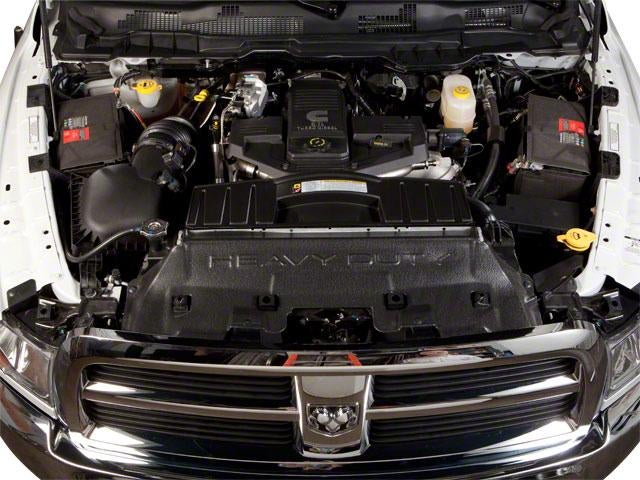

6.7L I6 CUMMINS TURBO-DIESEL ENGINE

• (STD)

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: N/A
• Cooling System
• Total Cooling System Capacity (qts): 29.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5000
• Gross Axle Wt Rating - Rear (lbs): 9350
• Curb Weight - Front (lbs): 4330
• Curb Weight - Rear (lbs): 3061
• Gross Vehicle Weight Rating Cap (lbs): 11500
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11450
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1718
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: SLA Independent
• Suspension Type - Rear: Live axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 9350
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.17 x 1.54
• Rear Brake Rotor Diam x Thickness (in): 14.09 x 1.34
• Tires
• Front Tire Order Code: TPY
• Rear Tire Order Code: TPY
• Spare Tire Order Code: TBB
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Spare Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 3085
• Rear Tire Capacity (lbs): 3085
• Spare Tire Capacity (lbs): 3085
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Revolutions/Mile @ 45 mph - Spare: 649
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 53.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 169.4
• Length, Overall w/o rear bumper (in): 259.4
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 74.1
• Overhang, Front (in): 39.5
• Overhang, Rear w/o bumper (in): 50.5
• Front Bumper to Back of Cab (in): 152.0
• Cab to Axle (in): 56.8
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.0
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.8
• Ground Clearance, Rear (in): 7.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.3
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 74.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 63.2
• Second Head Room (in): 39.9
• Second Leg Room (in): 40.3
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 63.2
• Summary

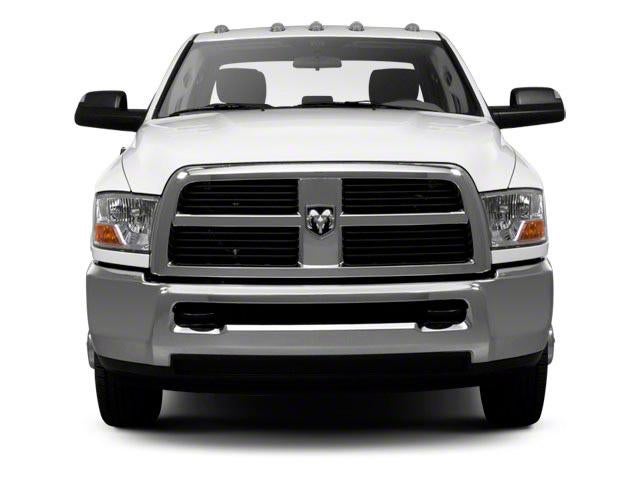

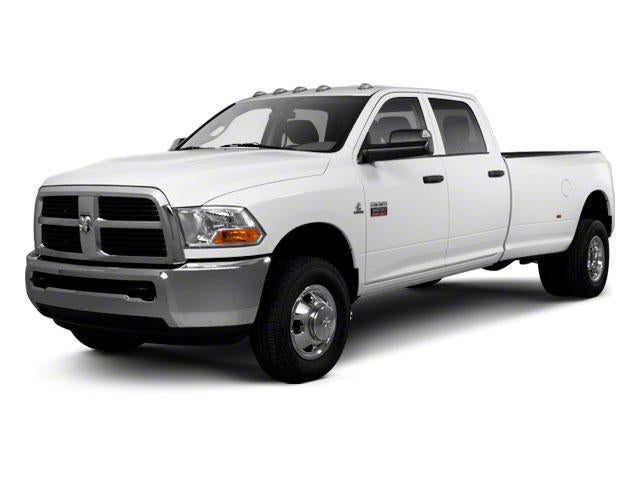

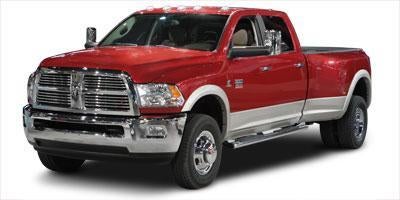

• Vehicle Name: Ram 3500
• Body Style: Crew Cab Pickup
